1. Pages

This document describes the different pages and their structure in the pregnancy application.

1.1. Landing Page

The landing page is the first page that users see when they access the app. It consists of three main sections:

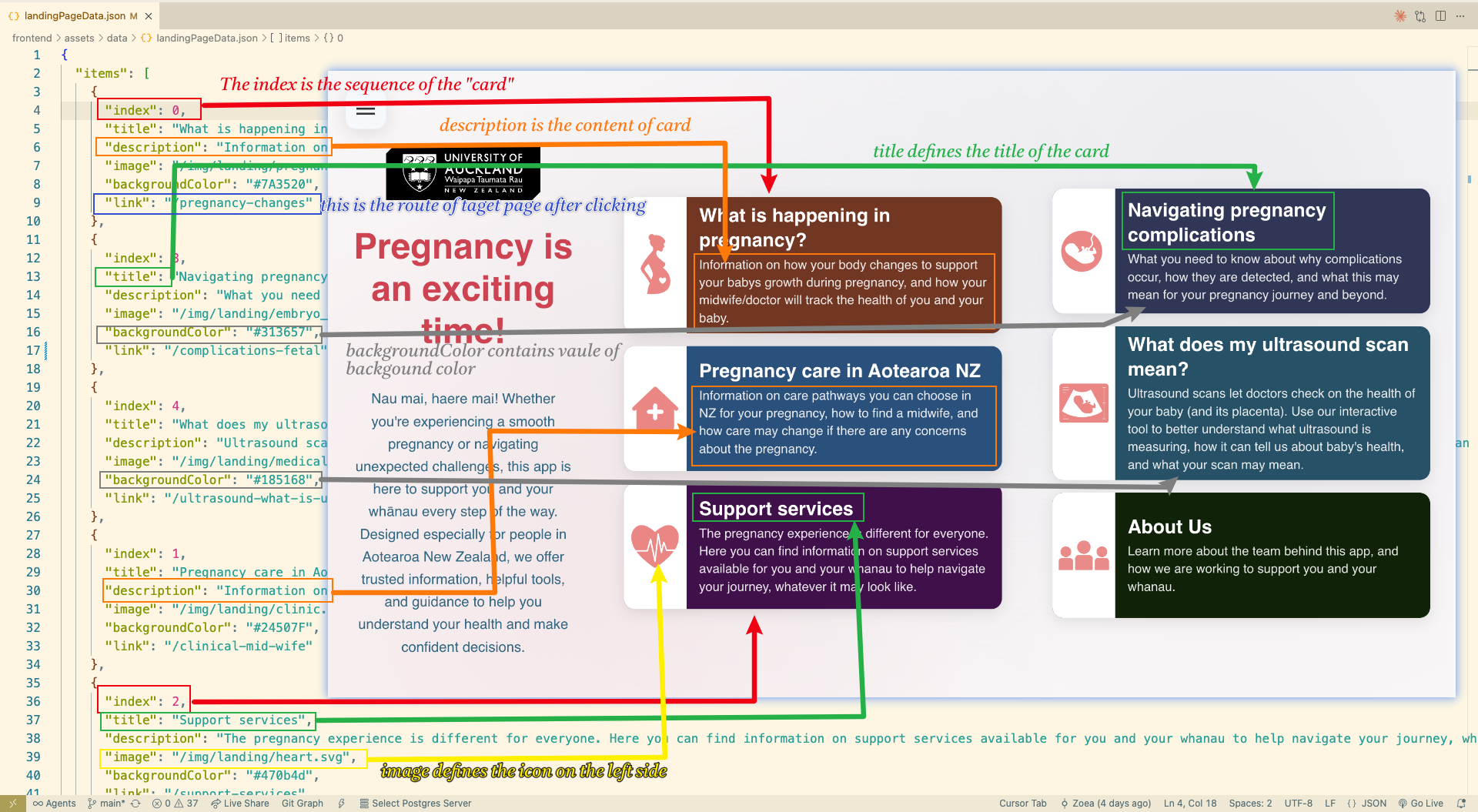

Five Cards

By clicking a card, users can navigate to the corresponding page. The title, background, icon, and content are stored in landingPageData.json. Adding or updating this file will automatically update the cards on the landing page. Below is how the card data is structured,

../_images/00_landing_page.png

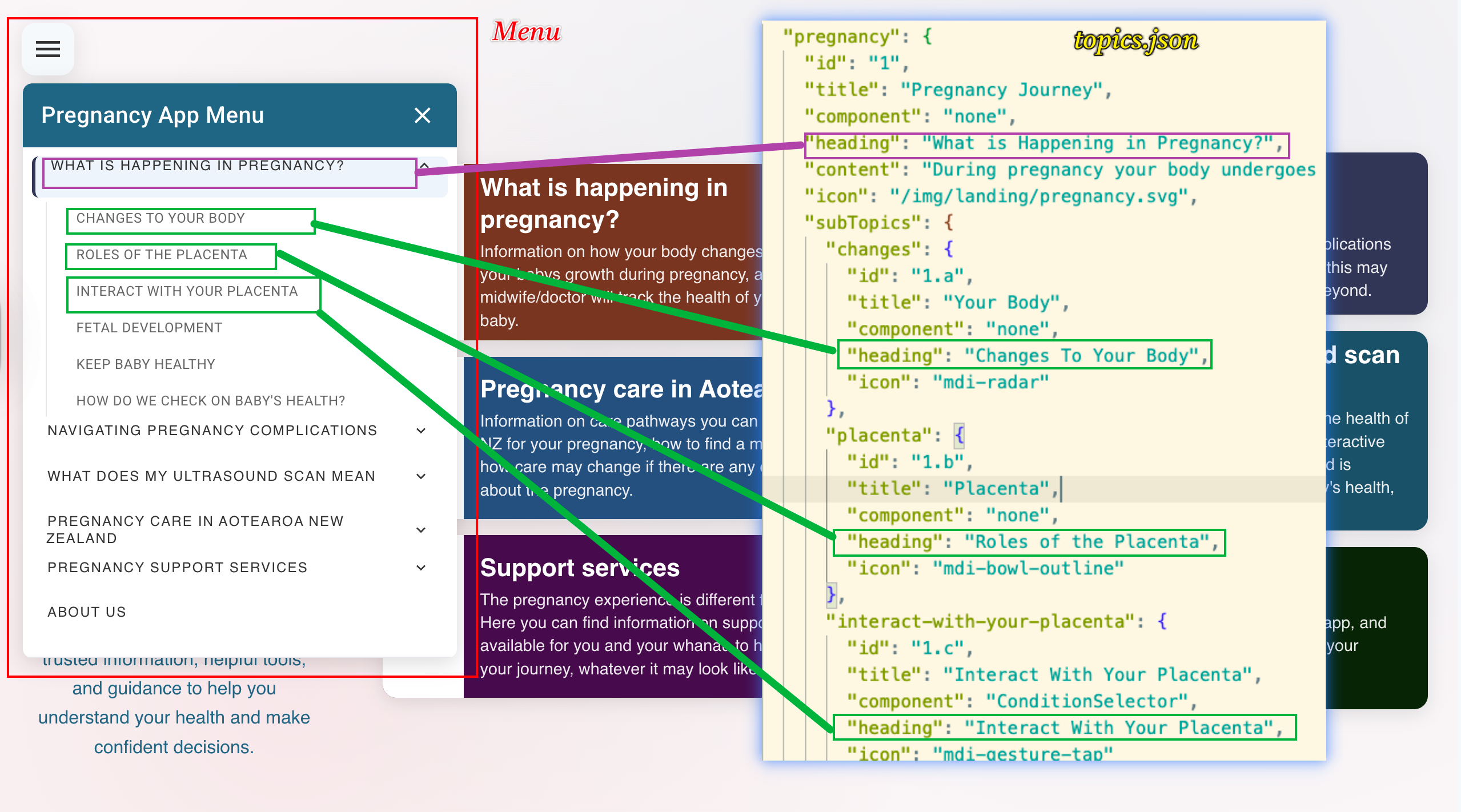

Menu

Located in the upper left corner, there is a menu button that includes all main topics and their sub-topics. Menu items are rendered based on the topics.json file. Below is how the menu data is rendered by the topic.json file.

../_images/00_menu.png

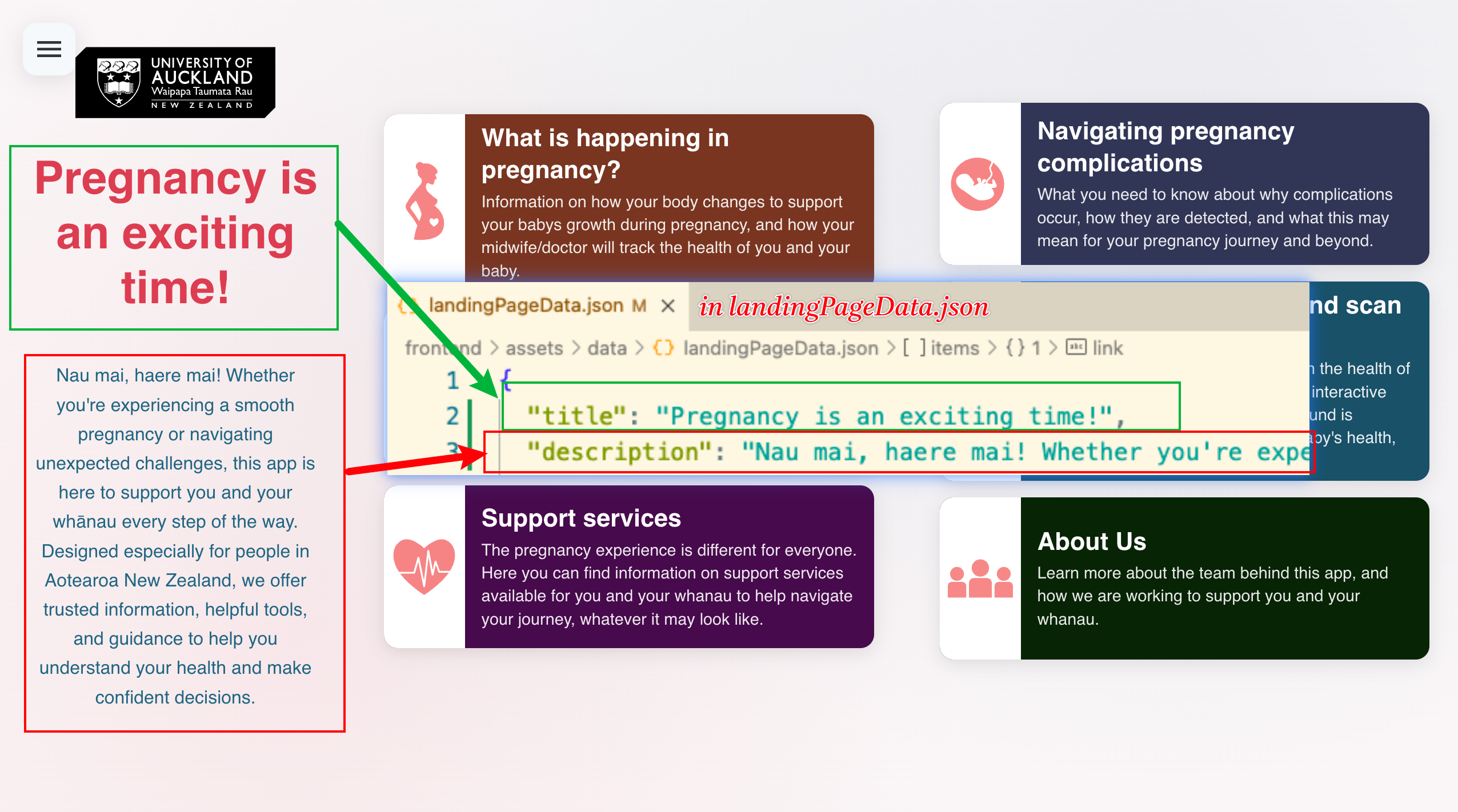

Left Section

Contains the title and description of the app, the data also defined in the landingPageData.json file.

../_images/00_left_landing.jpg

1.2. Main Application

The main application is divided into three parts:

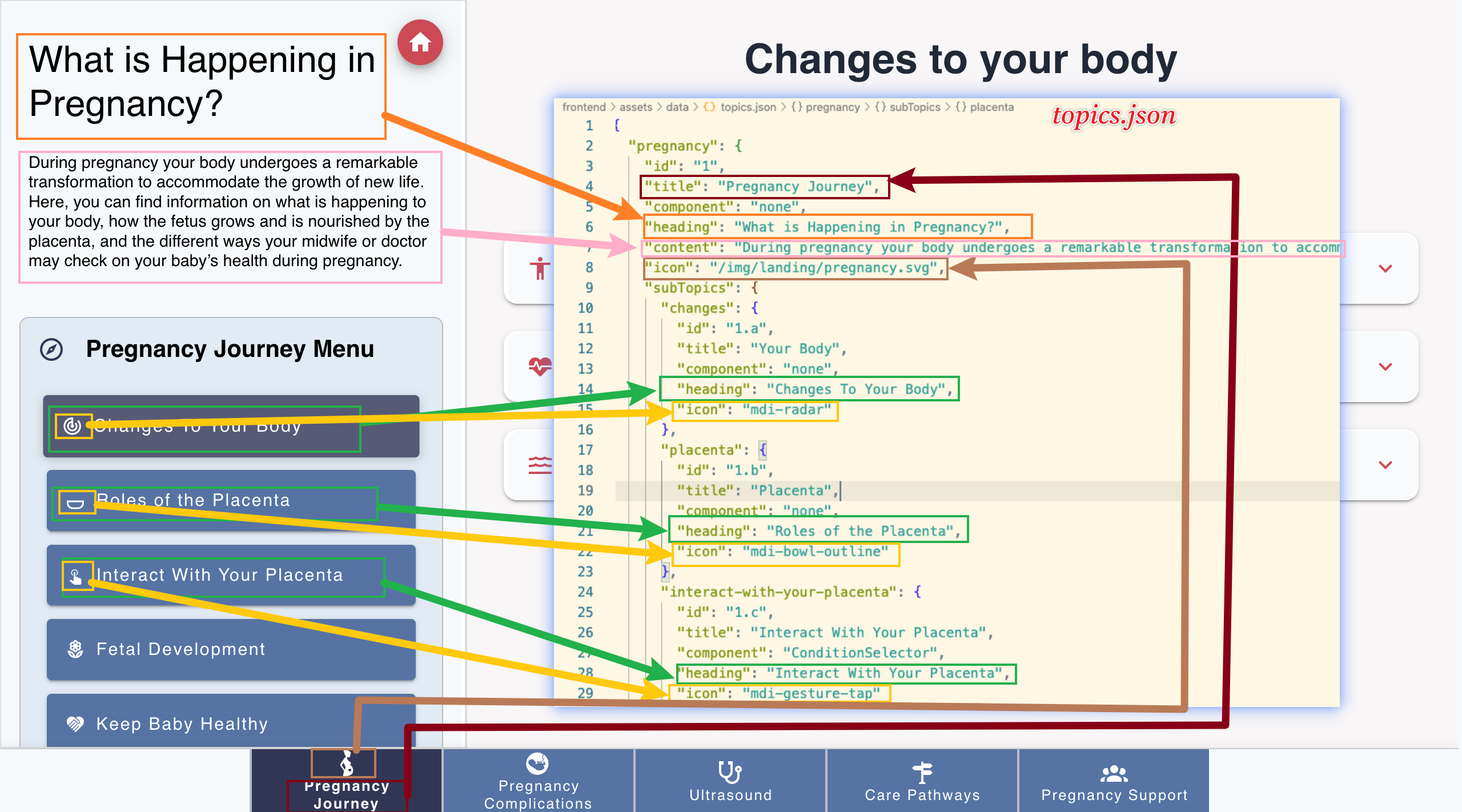

Left Side & Bottom

The left side of the page contains the menu and introduction, rendered based on the topics.json file. The bottom of the page contains the main navigation, rendered based on the topics.json file.

All the data for these sections are referred to the topics.json file like the following:

../_images/00_nav.png
Right Side

The right side displays the main content of the page, rendered based on the pageData folder. Each page (at the sub-topic level) has its own data file and is rendered using the ContentPane.vue file. For more information, please refer to the implementation_structure/06_pages:Pages Structure document.

1.2.1. Core Features

The application includes the following core features:

  • Pregnancy Journey

  • Ultrasound

  • Care Pathways

  • Pregnancy Complications

  • Support

1.2.2. Data Configuration

The data are stored under frontend/assets/data folder, please refer to the implementation_structure/02_assets:Data Assets document for more details about the data structure and configuration.

1.2.3. Content Rendering

The content redering is data-driven, please refer to the implementation_structure/06_pages:Pages Structure document for more details about the content rendering.

1.3. About Us Page

The About Us page provides information about the research team behind the pregnancy application.

The page data is stored in frontend/pages/about/aboutUs.json with the following structure:

  • title: Main page title

  • heroimage: Background image for the hero section

  • description: Team description text

  • team.photos[]: Array of team photos with src and alt attributes

  • contributors: Object containing title, description, and members array

  • contact: Object containing title, description, email, institution, and address

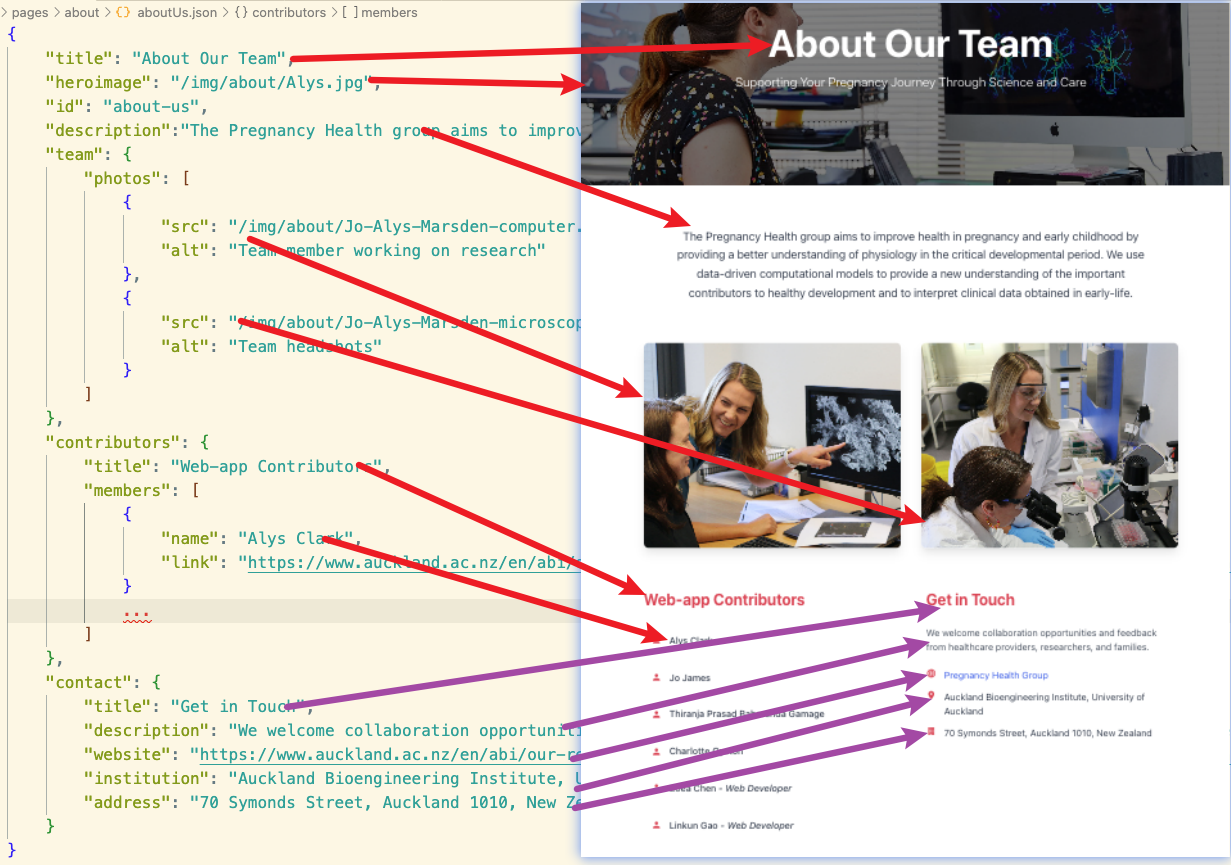

The image below shows the data structure of the about us page:

../_images/00_about.png
