4. How to control the model

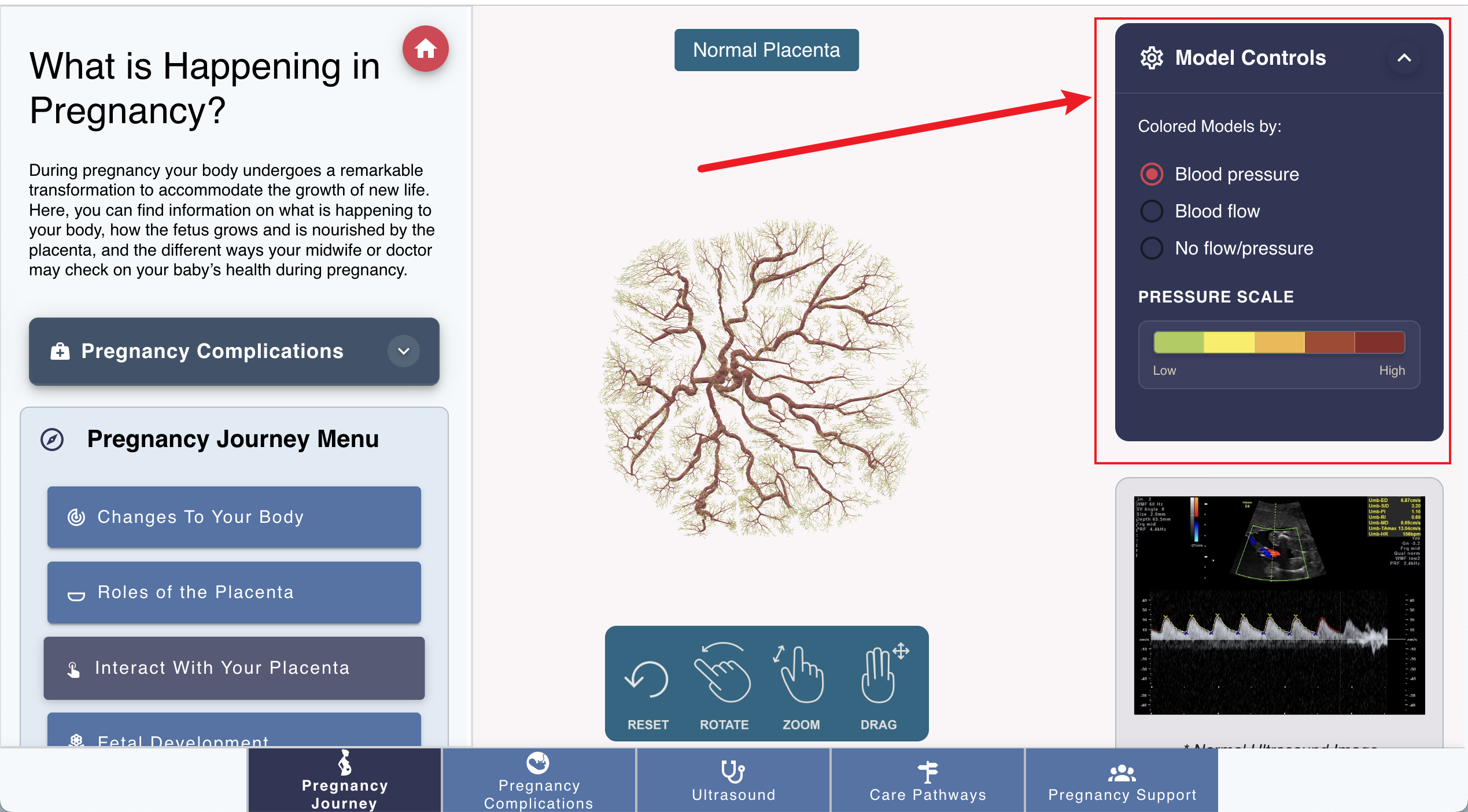

At the right side of the app, there is a panel controls, click the arrow button to open the panel. This panel is defined at the frontend/components/model/PanelControls.vue.

Under the model, there is a color mapping scale, which is used to show the color mapping of the pressure or flux. When click the “Pressure”, the color mapping will be the pressure, when click the “Flux”, the color mapping will be the flux. The default means that the color of the arterial vessels is red, and the color of the venous vessels is blue.

The color mapping is according to the definition in VTK file. And the logic of redering the color is in the frontend/utils/vtkLoader.js, for color definition, please refer to the pregnancy_app/02_model_config:Color Mapping document.
